HY-18H

18KW

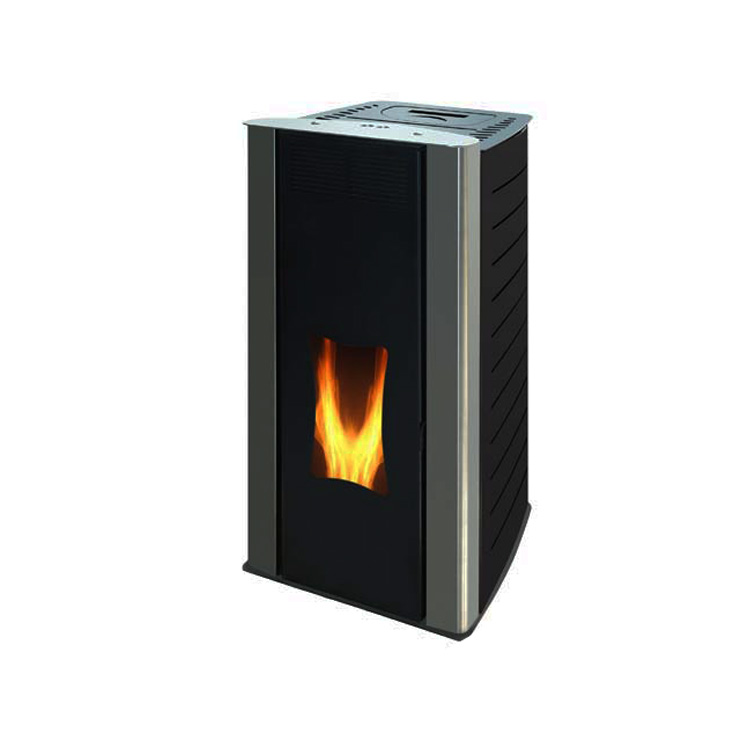

2019 new design high quality hydro pellet stove

                                           Product Parameter(HY-18H)
Rating power18kw
Rating Valtage and Frequency(v/hz)230/50
Max water pressure(bar)1.5
Performance 95.10%
Heat area(m2)340
Pellet tank capacity (kg)30
Smoke outlet /intlet pipe (ø mm)80/50
Electronic Comsuption Max(w/h)400
Working power input (W)70
Flue draught pressure(pa)0.1-15
Water tank Capacity:32L
Rating Power Min/Max (KW)'10/18
Rating Power Water Min/Max (KW)6/12.5
Automatic burning time min/max (h)11/18
Consumption for pellet min/max (KG/H)1.6/2.7
ΦAir outlet pipe(mm)80
Temperature of the smoke output Max/Min(℃)93/80



 1. Outside: steel coating.
2. Inside: monobloc steel structure, hand welded, heat-resistant up to 1200°C.
3. Door: carbon steel, high temperature resistant, with glass-ceramic.
4. Removable ash box: it collects the ash fallen through the holes in the brazier.
5. Glass-self cleaning: designing wind to blow ash from the glass keeps the glass always cleaning.
6. LCD control panel: it is placed on the upper side of the stove, simple and easy to be used. It is possible to plan the weekly switching on and off of the stove (week-end included).
7. Thermostat: The stove can keep the room's temperature stably. The temperature can be selected by users both on the panel and remote control, showing on the display.
8. Five steps power setting: it is up to your need, which also shows on the display.
9. Remote control
10. Smoke outlet: ø 80 mm, inlet ø 50 mm
11. Electrical supply: 230V-50Hz. 115V-60HZ, 100V-50HZ
