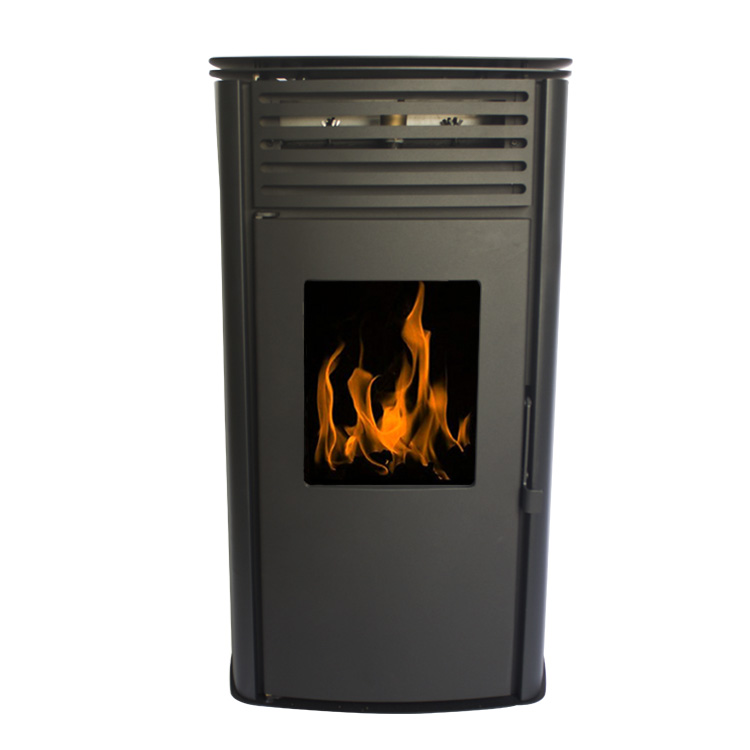

HY-20H

20KW

2019 new design indoor using hydro pellet stove

ProducT parameters(Hydro pellet stove)HY-20H
Dimension(W*H*D)1073*583*546mm
Weight190kg
Air input pipe50mm
Exhaust Outlet Pipe80mm
Water inlet/outlet pipe3/4''m
Electrical input140-350w
Max useful heat output20kw
Useful output power3.2/16.8kw
Min useful heat output4.9kw
Useful output power1.1/3.8kw
Boiler capacity22L
Water tank outside stove250L
Heat Area200㎡
Auto-burning Time6h-31h
Fuel Consumption0.8-4.2kg/h
Efficiency89.50%
Hopper Capacity25kg
Rating Power4.9kw-20kw
Rating voltage230v
Frequency50Hz


 1. Outside: steel coating.
2. Inside: monobloc steel structure, hand welded, heat-resistant up to 1200°C.
3. Door: carbon steel, high temperature resistant, with glass-ceramic.
4. Removable ash box: it collects the ash fallen through the holes in the brazier.
5. Glass-self cleaning: designing wind to blow ash from the glass keeps the glass always cleaning.
6. LCD control panel: it is placed on the upper side of the stove, simple and easy to be used. It is possible to plan the weekly switching on and off of the stove (week-end included).
7. Thermostat: The stove can keep the room's temperature stably. The temperature can be selected by users both on the panel and remote control, showing on the display.
8. Five steps power setting: it is up to your need, which also shows on the display.
9. Remote control
10. Smoke outlet: ø 80 mm, inlet ø 50 mm
11. Electrical supply: 230V-50Hz. 115V-60HZ, 100V-50HZ
