HY-22H

22KW

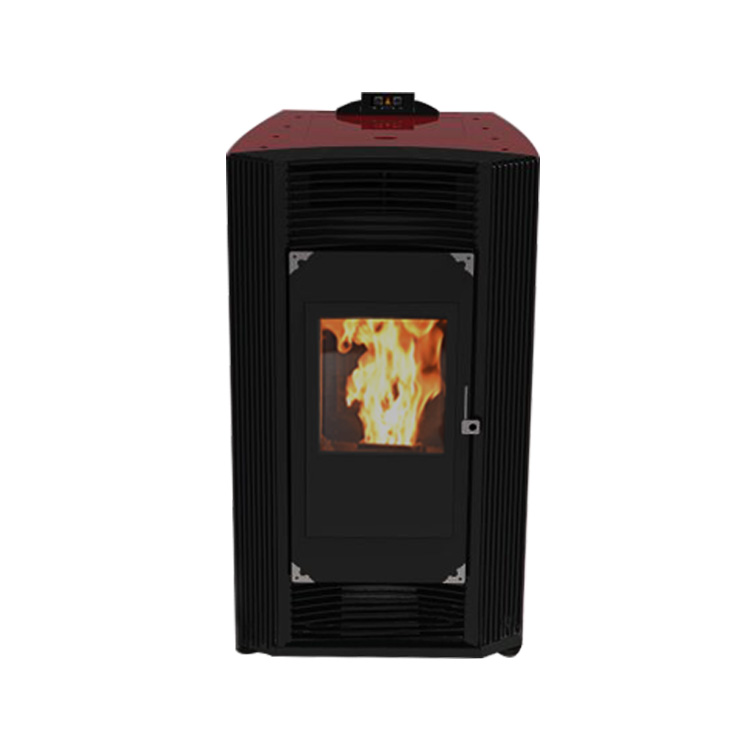

Smart water 22KW warm hydro pellet stove heating pellet stove with radiator

              Product parameters(Hydro pellet stove)HY-22H
Heat Area340㎡
Smoke input pipe50mm
Smoke Outlet Pipe80mm
Frequency50Hz
Auto-burning Time11h-28h
Fuel Consumption1.6-2.7kg/h
Perfomance95.1%
Rating Power22kw
Rating Power Water 6/12.5kw
Rating voltage230V
Max water pressure1.5bar
Pellet tank capacity  30kg
Electronic Comsuption Max400W/h
Working power input 70w
Flue draught pressure 0.1-15pa
Water tank Capacity 32L
Air outlet pipe80mm
Temperature of the smoke output 93/80℃


 1. Outside: steel coating.
2. Inside: monobloc steel structure, hand welded, heat-resistant up to 1200°C.
3. Door: carbon steel, high temperature resistant, with glass-ceramic.
4. Removable ash box: it collects the ash fallen through the holes in the brazier.
5. Glass-self cleaning: designing wind to blow ash from the glass keeps the glass always cleaning.
6. LCD control panel: it is placed on the upper side of the stove, simple and easy to be used. It is possible to plan the weekly switching on and off of the stove (week-end included).
7. Thermostat: The stove can keep the room's temperature stably. The temperature can be selected by users both on the panel and remote control, showing on the display.
8. Five steps power setting: it is up to your need, which also shows on the display.
9. Remote control
10. Smoke outlet: ø 80 mm, inlet ø 50 mm
11. Electrical supply: 230V-50Hz. 115V-60HZ, 100V-50HZ
