HY-10A

10KW

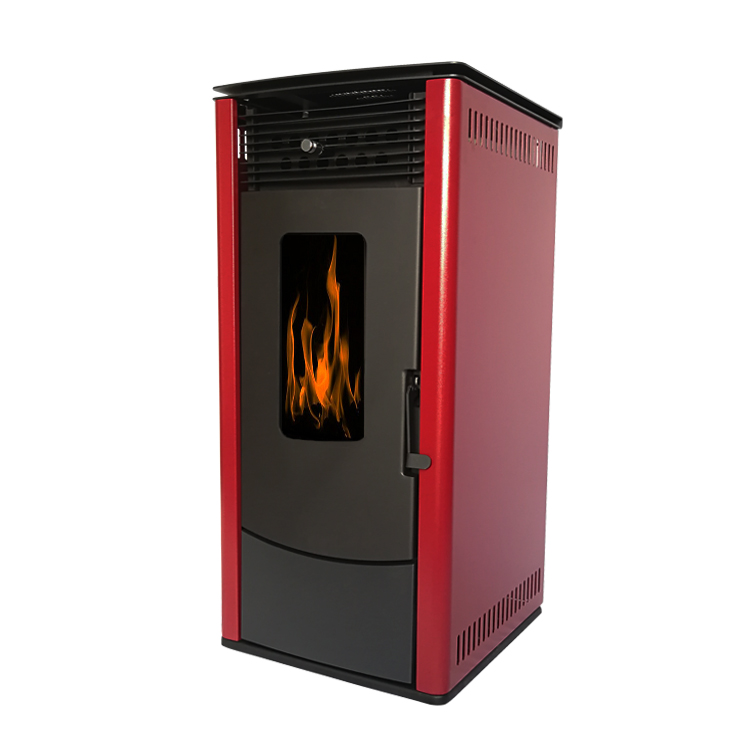

Eco-friendly Domestic Wood Pellet Stove/fireplace

         Product parameters(HY-10A)
Heat Area100㎡
Dimension(W*H*D)450*975*782mm
Weight70kg
Air inlet pipe50mm
Air outlet pipe80mm
Auto-burning Time13h-27h
Fuel Consumption0.8-1.8kg/h
Efficiency90%
Hopper Capacity20kg
Electronic comsuotion100-400W/h
Rating voltage230v


 1. Outside: steel coating.
2. Inside: monobloc steel structure, hand welded, heat-resistant up to 1200°C.
3. Door: carbon steel, high temperature resistant, with glass-ceramic.
4. Removable ash box: it collects the ash fallen through the holes in the brazier.
5. Glass-self cleaning: designing wind to blow ash from the glass keeps the glass always cleaning.
6. LCD control panel: it is placed on the upper side of the stove, simple and easy to be used. It is possible to plan the weekly switching on and off of the stove (week-end included).
7. Thermostat: The stove can keep the room's temperature stably. The temperature can be selected by users both on the panel and remote control, showing on the display.
8. Five steps power setting: it is up to your need, which also shows on the display.
9. Remote control
10. Smoke outlet: ø 80 mm, inlet ø 50 mm
11. Electrical supply: 230V-50Hz. 115V-60HZ, 100V-50HZ
