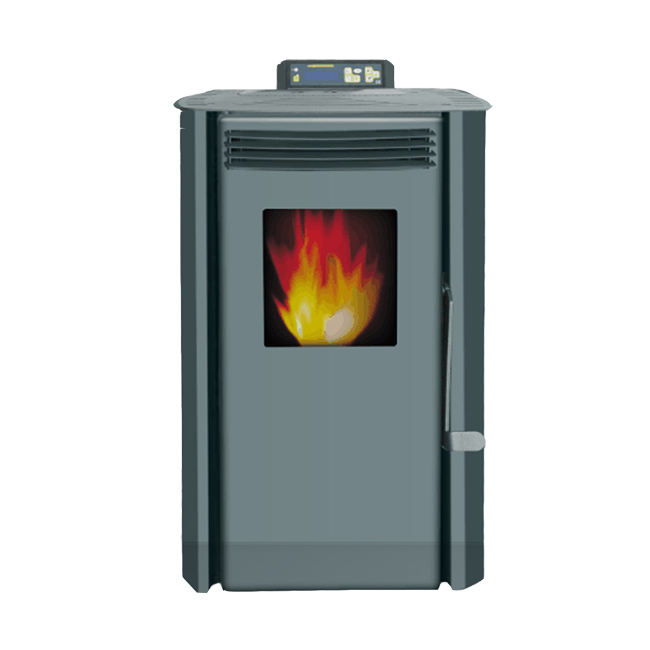

HY-P04
4W
small indoor warm pellet stove
| HY-P04 | |
| Dimension(W*H*D)(MM) | 364*560*433 |
| Weight(KG) | 55 |
| Air inlet Pipe(MM) | 50 |
| Air outlet Pipe(MM) | 80 |
| Heat Area(M2) | 20-40 |
| Automatic Burning Time(Min-Max)(H) | 4/13 |
| Consumption for Pellet(Min-Max)(KG/H) | 0.3/1.0 |
| Efficiency(%) | 90 |
| Hopper Capacity(KG) | 4 |
| Electronic consumption(W/H) | 100-400 |
| Rating Voltage and Frequency(V/HZ) | 230/50 |
| Rating Power(kW) | 4 |
1. Outside: steel coating.
2. Inside: monobloc steel structure, hand welded, heat-resistant up to 1200°C.
3. Door: carbon steel, high temperature resistant, with glass-ceramic.
4. Removable ash box: it collects the ash fallen through the holes in the brazier.
5. Glass-self cleaning: designing wind to blow ash from the glass keeps the glass always cleaning.
6. LCD control panel: it is placed on the upper side of the stove, simple and easy to be used. It is possible to plan the weekly switching on and off of the stove (week-end included).
7. Thermostat: The stove can keep the room's temperature stably. The temperature can be selected by users both on the panel and remote control, showing on the display.
8. Five steps power setting: it is up to your need, which also shows on the display.
9. Remote control
10. Smoke outlet: ø 80 mm, inlet ø 50 mm
11. Electrical supply: 230V-50Hz. 115V-60HZ, 100V-50HZ
